Drone Defense Command Dashboard Simulation
Explore how multi-sensor data is fused to identify and counter drone threats

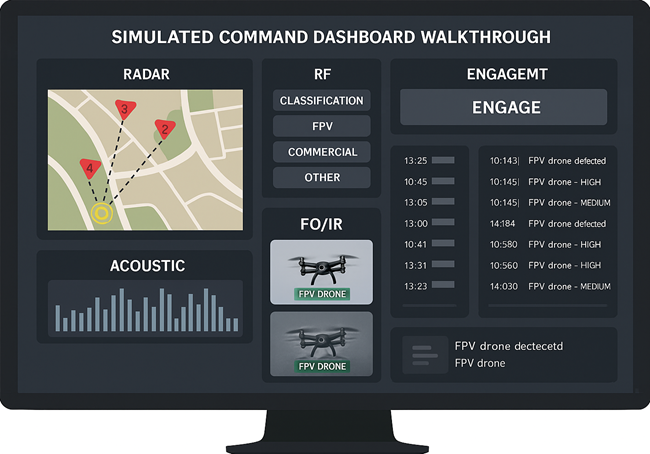

🧭 Simulated Command Dashboard Overview
Click on the hotspot buttons on the image for more information.
Radar Feed
RF Signal
EO/IR Camera
Acoustic Array
Engage Threat
Radar Feed: Displays low-flying drone tracks. Filters out birds using Doppler velocity.
RF Signal: Scans 2.4/5.8 GHz bands for FPV controller signals and triangulates source.
EO/IR Camera: Provides thermal and visual imagery to confirm drone classification.
Acoustic Array: Detects high-pitch drone noise and estimates bearing and type.
Engage Threat: Initiates countermeasures like RF jamming or interceptor drone deployment.
